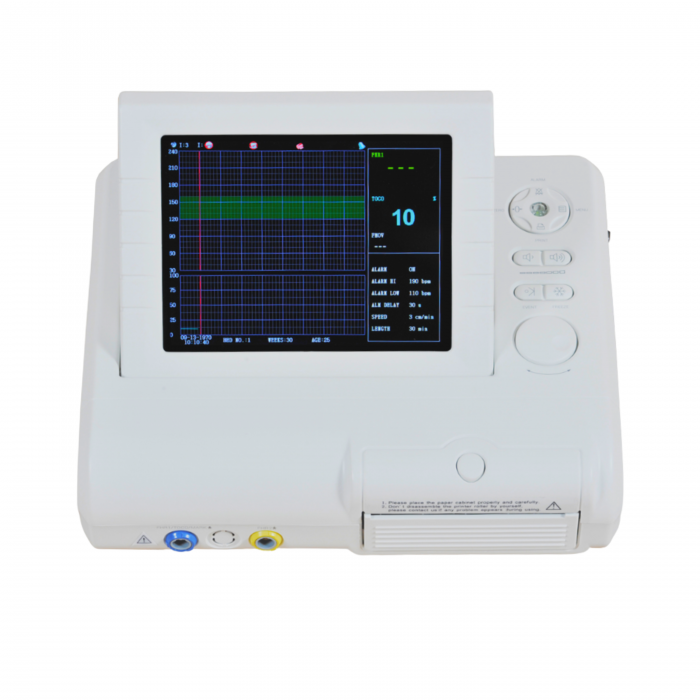

Fetal monitor PG 800g

The SpO2 PG 800g fetal monitor is manufactured using high-precision technology. It features a single or dual ultrasound sensor, an 8.4" TFT LCD display, an audible alarm, and a choice of focus on the mother or fetus.

TECHNICAL CHARACTERISTICS:

Display: 8.4 " color TFT LCD

Resolution: 800x600

Display mode: standard view, fetal view, mother view

Indicator: power indicator light, alarm sound

Interface: connector for connecting FHR, TOCO and fetal motion sensor sensor. Connector for connecting the mother'S ECG, NIBP and SPO2 sensor (optional). Socket (RJ45) for communication cable with central monitoring station

Station software

Power supply: AC 100 ~ 240V, 50 / 60Hz, power < 60va

Trend chart: resolution from 1C, 5c, 10c. maximum time 24 hours

Trend table: resolution from 1 s, 5 s, 10 s. view up to 1000 items

Alarm: adjustable high and low limits

Three-level audible and visual alarms

User configuration: all colors of parameters and waves can be set according to the user's desire

TECHNICAL CHARACTERISTICS:

Security

Meets the requirements of the IEC60601 series

Protection type: class I with internal power supply

Degree of protection: BF

DIMENSIONS AND WEIGHT

Dimensions: 320 (W) x260 (H)x80 (D)mm

Weight: 3.5 kg

OPERATING CONDITIONS

Temperature: 0 ° C ~ + 40 ° C

Humidity: 15% ~ 95%

Storage environment:

Temperature: -20 ° C ~ + 60 ° C

Humidity: 10% ~ 95%

Patient range: pregnant adult

FHR

Ultrasound frequency: 1 MHz

Range: 50 ~ 240 beats per minute

Resolution: 1 BPM

Accuracy: ±2 bpm

TOCO

Range: 0 ~ 100%

Resolution: 1%

Non-linear error: < = ±8%

Zero control: Manual

Measured parameters

Heart rate of two fetuses, SpO2, MECG, NiBP
