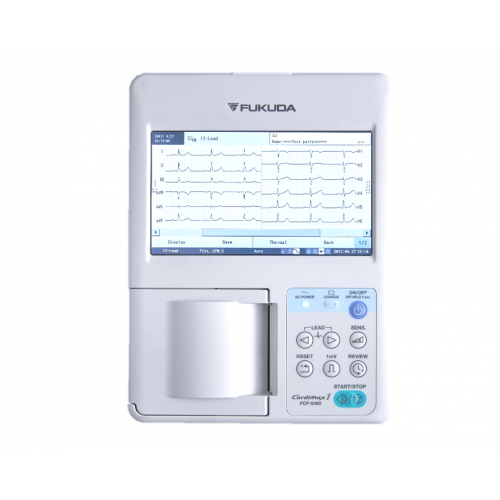

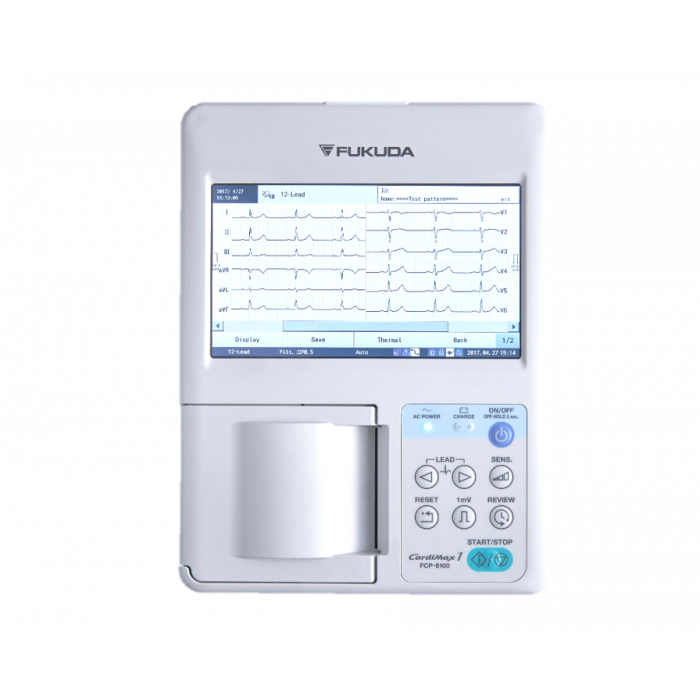

Electrocardiograph FCP-8100/FX-8100

The weight is only 1.2 kg, and the size is smaller than A4 format. But it provides excellent performance and allows you to use it in a wide range.

FEATURES:

Interpretation/Arrhythmia function (FCP-8100 only)Color LCD display with a resolution of 800 x 4806 / 12 leads ECG1 / 3 channels on paper 50/63 mm Internal memory for storing ECG data LAN port for external connection

SPECIALS

Sizes

225 (W) x 180 (D) x 50 (H) mm

Weight

1.2 kg

The FCP-8100/FX-8100 is one of the smallest and lightest ECG devices on the market. Its large 7-inch widescreen LCD display provides unparalleled ease of use for checking patient data, as well as clear, accurate ECG shapes.

The standard ECG waveform is 12 leads

The FCP-8100/FX-8100 is equipped with the largest LCD display in its class. A large widescreen screen with a diagonal of 7" allows the user to view ECG waveforms up to 12 leads simultaneously in real time. The increased viewing area allows you to better see critical waveforms and heart rate. In addition, the user can view the patient's demographic data and device settings from the main screen.

Selectable recording formats

The user can choose the recording format from 1 or 3-chamber. Automatic recording mode allows you to select these formats, as well as select 1 channel + 1 rhythm lead with the option to select the mode of continuous recording of waveforms. The report format for measurement or analysis can be selected as needed.

Internal memory:

Internal memory allows users to store waveforms and measurement/analysis data for up to 500 studies. The operator can view the selected ECG data from the memory on the LCD display or print them out if necessary.
