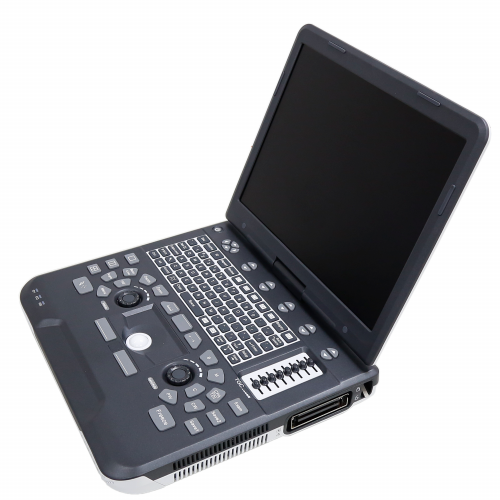

APOGEE 1000 is a digital ultrasound diagnostic system designed to perform a wide range of extracorporeal procedures , obtaining images of various parts of the body. This ultrasound system is compatible with various sensors that allow you to receive, display and analyze ultrasound data.
Purpose
The ultrasound system is intended for use in general research: abdominal research, obstetrics (3D, 4D), gynecology, urology, orthopedics, neonatology, vascular system, small organs, cardiology (including cardiology in newborns) and oncology (Elastography).
Features
15 " high-resolution LCD screen;
500 GB hard disk with Smarchive patient database management program;

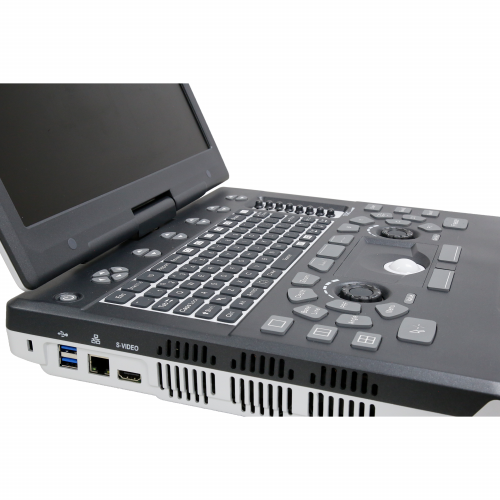

Two ports for USB devices, one connector for connecting sensors to which you can connect a hub to two sensor ports (optional)
The device can operate independently, as it is equipped with a lithium-ion battery;
The main research modes of ultrasound are available: tissue Harmonic Imaging. THI), a high-precision macro Fidelity Imaging mode. MFI), a mode of high pulse Repetition rate (English High Pulse Repetition frequency, English speed. Hprf), trapezoidal image, Adaptive Noise Reduction Mode Nanoview, three-dimensional reconstruction by the "free hand" method (previously available common modes: B, 2B, 4B, M, B / M, CFM, B / C, PWD, CPA, DPA; B + CFM, B + CPA, B + DPA, B + PW, B + CFM + PW, B + CPA + PW)
Improve image quality by using Auto-fit image optimization;
Xbeam multipath Composite scanning and Panoscope panoramic scanning are available
Anatomical M-mode for three sections;
Auto IMT (automatic calculation of the thickness of the intimate media complex with an analysis program);
Preliminary parameters, annotations, markers, measurement programs for abdominal research, Obstetrics, Gynecology, Cardiology, Angiology, small organ research, Urology, Pediatrics, emergency medicine.
