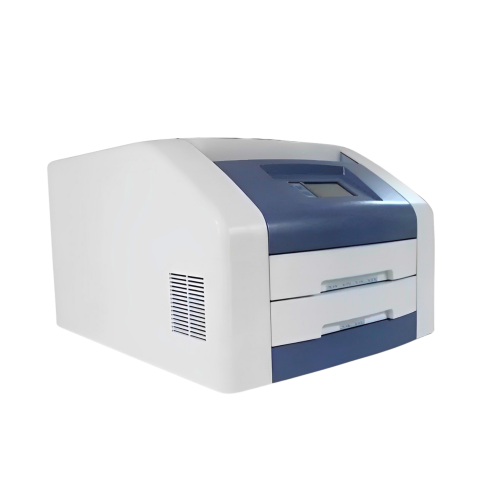

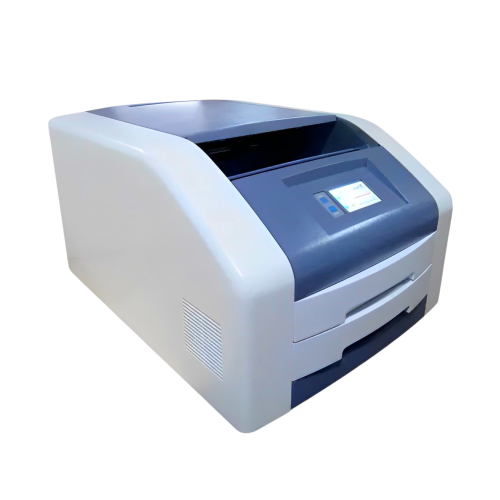

X-ray film printer KND6320

Product Code: KND6320
Reviews: (0)
In Stock
Buy in one click

The KND6320 dry laser imaging device is a kind of thermal imaging printer designed to copy image data transmitted over the internet in DICOM format. According to the DICOM Protocol, its coordinated connection with CT (computed tomography), MR1 (Magnetic Resonance Imaging), Digital X-ray tomography, fluoroscopy, image archiving, communication system, ultrasound tomography, medical radiology, portable X-ray tomography, and other tomography is carried out in accordance with the requirements of the image application. Thanks to the direct thermal imaging technique of this device, the image medium can perform high-quality printing at a gray level suitable for diagnostics.

Basic parameters

  • Printing technology direct heat-sensitive image formation (dry printing, in a bright room)
  • Resolution 320 dpi (20 pixels/mm)
  • Print Speed 14 " X17 "> 60 sheets / h; 8"x10"> 80 sheets / H
  • Print grayscale level 14 bits
  • Method of feeding the film with a grater
  • Film introduction 2 boxes with 200 films
  • Film Size 8 x 10, 10 x 12, 11 x 14, 14 x 17
  • Film Type Medical heat-sensitive dry type film
  • Interface 10/100/1000 Base-1 ' Internet (RJ-45)
  • Network protocol DICOM3.0 Standard
  • Image control according to the connected equipment, image processing is performed automatically
  • Control Panel Touch screen with warning, fault and status indication
  • Power supply 220V± 22V AC / 50Hz/600W
  • Weight 45kg
  • Operating ambient temperature 0°c -35°C
  • Working ambient humidity 35% -90%
  • Storage humidity 30% - 95%,
  • Storage temperature -22-50°C
  • Base of the device case by option
