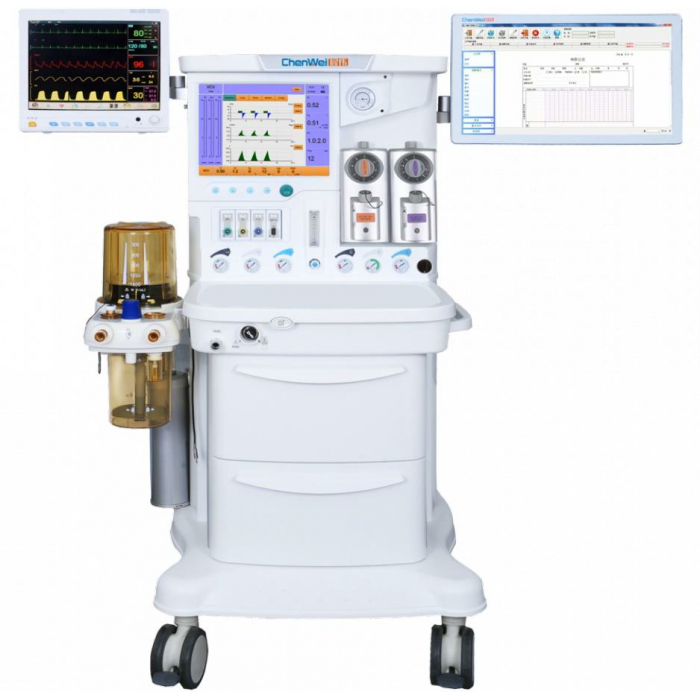

Smart menu helps to reduce set-up time and minimize the need for training. 15" touch screen without dead space. Day/night display mode provides a better visual experience for users. Full range of ventilation modes display, including vcv, PCV, SIMV, SIMV-PC (optional) ), PSV, PRVC (option). Also display pressure, flow, volume and CO2 waveform in the same interface. Trend display for the last 72 hours. Up to 3000 logs.
Fan Specifications -
Ventilation modes -
VCV - volume control ventilation
SIMV - synchronized intermittent mandatory ventilation
SIMV-PC - synchronized intermittent forced ventilation with pressure control (option)
MANUAL - Manual
SIPPV (A/C) - synchronized intermittent forced ventilation under pressure
PCV - pressure controlled ventilation
PSV - Pressure Support Ventilation
STAND-BY - RESERVE
PRVC - Volumetric pressure regulator (option)
Fan parameters -
Fan type - electronically controlled, pneumatically driven
Tidal volume range - 10-1500 ml
Pressure range - 5-60 cmH20
Pulse rate range - 1-100 bpm (1-40 bpm with SIMV)
range l:E - 4:1-1:8
Trigger range - -20-20 cmH20 (based on PEEP)
Flow trigger - 0-15 l
Minute volume range - >18 L/min
Weighing range - 0-5/100
System standard -
Hypoxia protection system - N2O cut-off valve, O2 concentration >25%

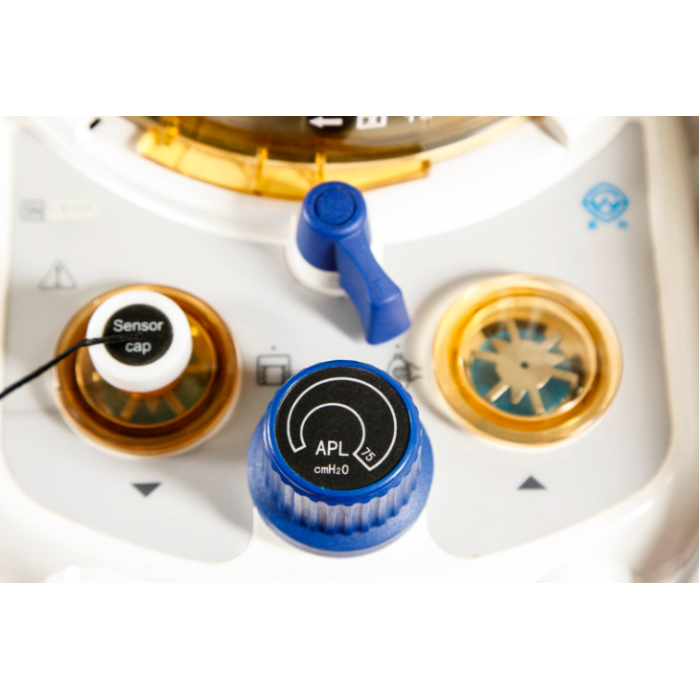

Safety valve - <12.5 kPa
Fresh gas compensation - 25-75 l/min

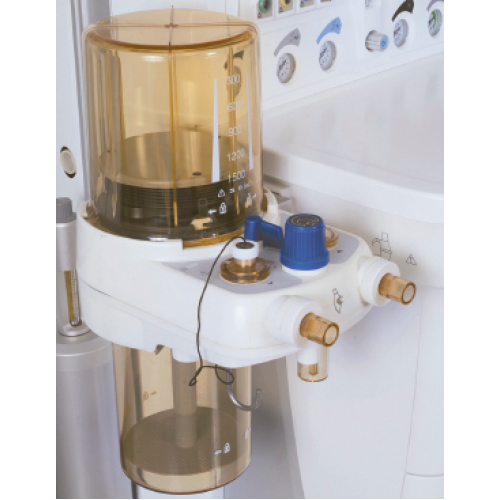

CO2 absorber volume - 2 l
Flowmeter - E-flowmeter
0.1-15L/min O2, 0.1-15L/min N2O, 0.1-15L/min air -..

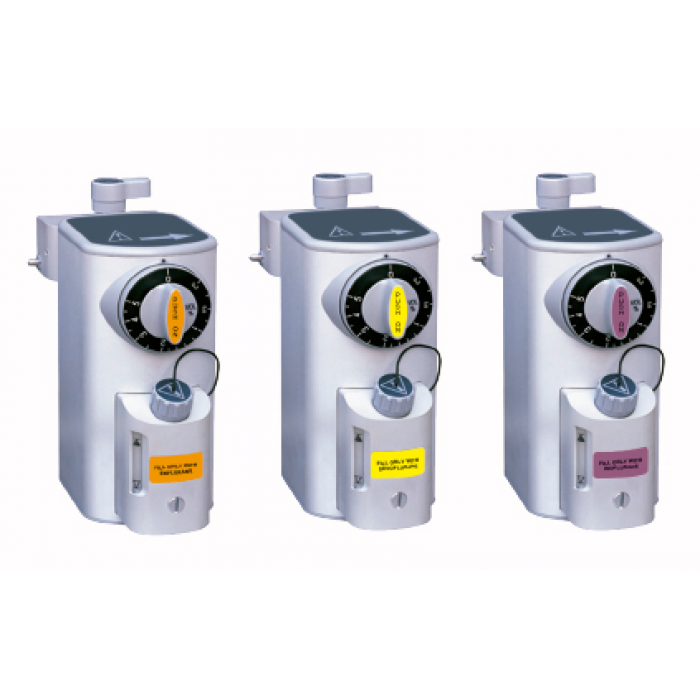

Evaporator - 2 Selectetac. max 2 mounts
(Isoflurane/Enflurane/Sevoflurane/Halothane)
Monitoring
Graph display - P-T, F-T, V-T waveforms, P-V, V-F, F-P loops (increase/decrease,
compare, freeze)
