This is a visual workplace management system that combines computer technology and an electric colposcope
This new product collects digital imaging technology and colposcope technology
It is used for gynecological control. This technology is different from traditional colposcope testing
She removes the eyepiece and breaks through the optical line of the colposcope

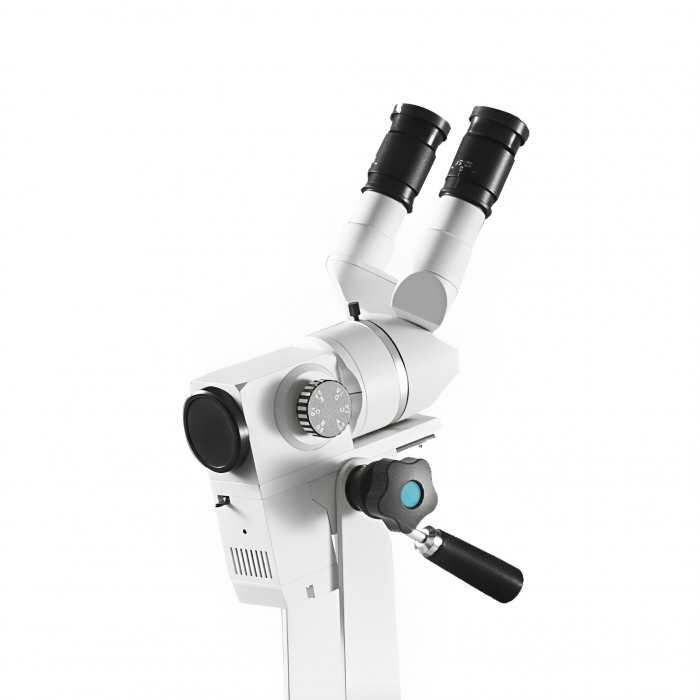

Main body of the optical lens:
A straight canister-type lens or an optical lens at a 45° angle, the focus time varies by five levels.
Spring lever bracket, can be fixed at any angle
Bracket for integrating the dual-light cold lighting resource and optical fiber transmission system
Green filter port prismatic machine
Splitter regulator
CCD Matrix Image micro-tuner
Standard CCD video port
High-definition digital CCD sensor

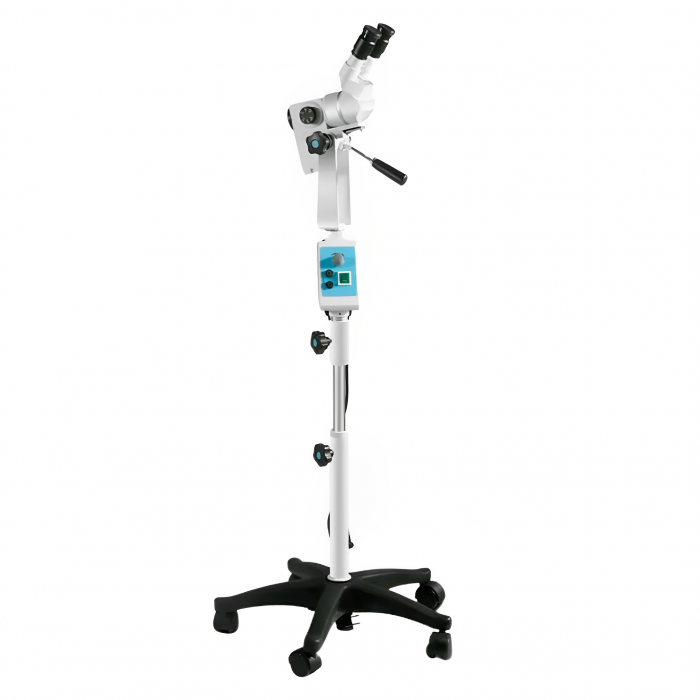

Trolley, PC and printer
Strong functional images-word processing software package
Technical characteristics of optics:
Binocular focus: 160mm

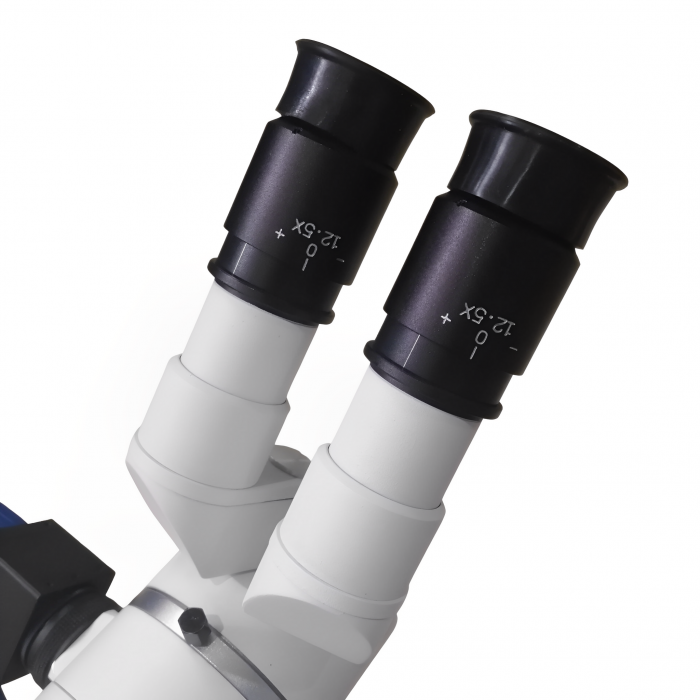

Eyepiece: 12.5 X, wide-angle view
Adjustment: ± 5D
Working distance: 300mm
Eye distance adjustment range: 50-75mm
Micro-adjustable focus range: 0-40mm
Image-Assembly-grid: f4. 5-f32
Cold light resource: 15/150 W × 2
